NAME

cell - CELL language interpreter for visualization using SDL/OpenGL/PostScript/AVI/PDF

Version 1.15 / December 7, 2016

SCREENSHOT

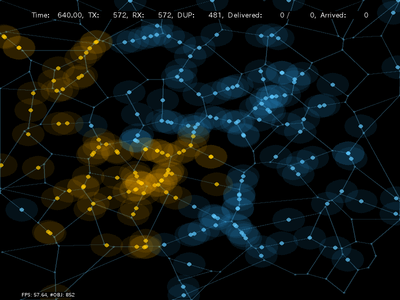

DTN simulator visualization

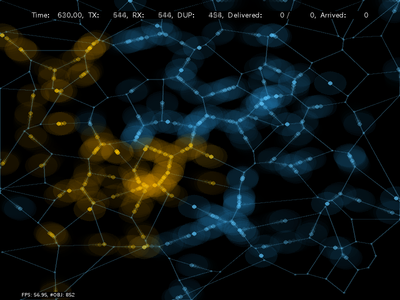

DTN simulator visualization with blurring

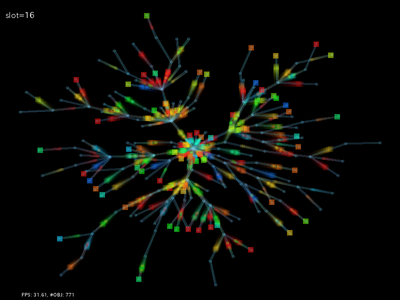

CCN simulator visualization with blurring

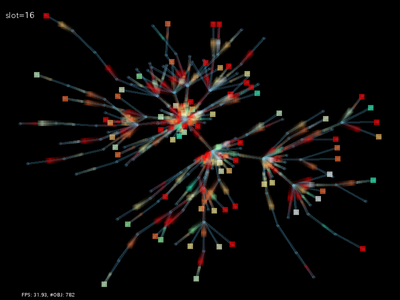

CCN simulator visualization with blurring and blue-yellow (#3) color map

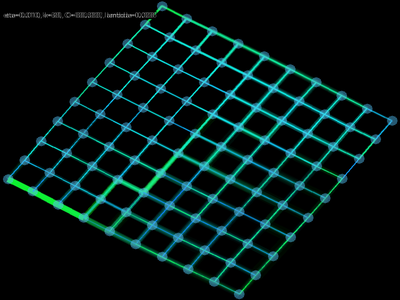

DFC-BP+ visualization

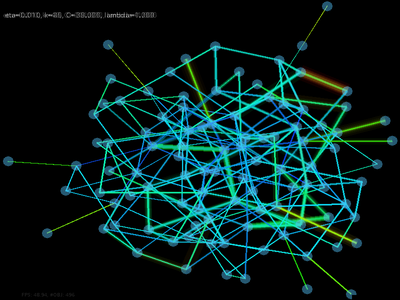

DFC-BP+ visualization

Circuit-switching illustration (converted from PostScript)

M/M/1 queue illustration (converted from PostScript)

SYNOPSIS

  cell [-dfN] [-c #] [-M class] [-F rate] [-L rate] [-A alpha] [-o file] [file...]

DESCRIPTION

This manual page documents cell. This program is a one-pass interpreter of the CELL language, a simple line-oriented language for dynamic graphic drawing. cell read a source code written in the CELL language from the standard input or specified files. Every line in the source code is parsed and interpreted. The output is sent to either a window in SDL and OpenGL modes or a file in PostScript, AVI, and PDF modes.

OPTIONS

-d

Enable debugging using Smart::Comments module.

-f

Run in full-screen mode in SDL and OpenGL modes. By default, the window size is set to 800x600 pixels.

-N

Disable macro expansion with cpp (pre-processor for the C language).

-c #

Select the color map for gradient color. The color map is specified by the number (0 - 6). The supported color map is as follows.

  0: HSV (Hue Saturation Value)
  1: cyan-red
  2: blue-orange
  3: blue-yellow
  4: purple-green
  5: green-magenta
  6: green-red

Gradient colors are named as `heat0', `heat1', ..., `heat100'. With the color map 0 (HSV), `heat0' is blue, `heat50' is green, and `heat100' is red. With the color map 4 (purple-green), `heat0' is purple, `heat50' is white, and `heat100' is green.

-M class

Specify the monitor class. By default, `SDL' monitor class is used. The supported monitor classes are:

  SDL           Draw in a window with SDL library
  SDL_Filter    SDL with blurring filter
  OpenGL        Draw in a window with OpenGL library
  OpenGL_Filter OpenGL with blurring filter
  PostScript    Write to the standard out in PostScript language
  Export::AVI   Export to a file in AVI video format
  Export::PDF   Export to a file in PDF format
-F rate

The number of frames per animate/fade. The default frame rate is 30 (i.e., 30 frames per animate/fade).

-L rate

The maximum number of frames per second. The default frame rate is 30 (i.e., 30 frames per second).

-A alpha

The alpha value for SDL_Filter and OpenGL_Filter monitor classes. The default value is 128.

-o file

Specify the filename of the output file for Export::AVI and Export::PDF monitor classes.

CELL LANGUAGE COMMANDS

  alpha (name|regexp) alpha
  animate name (goal_x goal_y|name[(+|-)dx(+|-)dy])
  attach name parent_name dx dy
  color (name|regexp) color
  define name bitmap file [(x y|name[(+|-)dx(+|-)dy])]
  define name box [-f color] [width height color (x y|name[(+|-)dx(+|-)dy])]
  define name ellipse [-f color] [rx ry color] [(x y|name[(+|-)dx(+|-)dy])]
  define name line [-ht] sx sy dx dy [width color]
  define name link src_name dst_name [width color]
  define name polygon [-f color] [-r degree] n r [color (x y|name[(+|-)dx(+|-)dy])]
  define name spline x1 y1 x2 y2 x3 y3 [width color]
  define name text [-lcr] string [size color (x y|name[(+|-)dx(+|-)dy])]
  define name wire [-ht] sx sy dx dy [width color]
  dump
  display
  fade (name|regexp)...
  hide (name|regexp)...
  kill (name|regexp)...
  move (name|regexp) (x y|name[(+|-)dx(+|-)dy])
  palette symbol r g b [alpha]
  priority (name|regexp) level
  resize (name|regexp) (x y|name[(+|-)dx(+|-)dy])
  shift (name|regexp) dx dy
  scale (name|regexp) ratio
  sleep x
  spring [-f filter] [-r degree] (name|regexp)... [x1 y1 x2 y2]
  unhide (name|regexp)...
  wait


EXAMPLES

Many examples are found in ./ex directory in the source archive.

M/M/1 queue

  #define font_size 20
  #define packet_color gray80

  #define add_note_above(name, str) \
  define name##_note text str font_size white name+0-40

  #define add_note_below(name, str) \
  define name##_note text str font_size white name+0+40

  #define create_slot(name) \
    define name box -f black 10 50 white

  #define create_slot_at(name, pos) \
    create_slot(name) pos

  #define create_customer(name) \
    define name box -f black 10 50 packet_color

  #define create_customer_at(name, pos) \
    create_customer(name) pos

  define server ellipse -f black 30 30 white
  add_note_below(server, server)
  move server_note server+.02+.08

  create_slot_at(b1, server-35+0)
  create_slot_at(b2, b1-10+0)
  create_slot_at(b3, b2-10+0)
  create_slot_at(b4, b3-10+0)
  create_slot_at(b5, b4-10+0)
  add_note_below(b5, buffer)
  move b5_note b5+0+.08

  define lb line -h .25 .5 b5-10+0 undef 2 black
  define la line -h server+30+0 undef .65 .5 2 black

  create_customer_at(c1, .33 .44)
  create_customer_at(c2, .36 .44)
  create_customer_at(c3, .56 .44)
  create_customer_at(c4, .62 .44)

  add_note_above(c1, customer)

  display
  wait


AVAILABILITY

The latest version of cell is available at

http://www.lsnl.jp/~ohsaki/software/cell/cell-1.15.tar.gz

INSTALLATION

cell uses standard Perl's MakeMaker module. Thus, just type the following commands.

  perl Makefile.PL
  make
  make install

cell depends on several standard and non-standard Perl modules available in CPAN: Class::Accessor::Lite, File::Temp, Jcode, List::MoreUtils, List::Util, OpenGL, SDL, Smart::Comments, and Time::HiRes.

COPYRIGHT

Copyright (C) 2013-2016 Hiroyuki Ohsaki (ohsaki[atmark]lsnl.jp)

This program is free software; you can redistribute it and/or modify it under the terms of the GNU General Public License as published by the Free Software Foundation; either version 2 of the License, or (at your option) any later version.

This program is distributed in the hope that it will be useful, but WITHOUT ANY WARRANTY; without even the implied warranty of MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE. See the GNU General Public License for more details.

You should have received a copy of the GNU General Public License along with this program; if not, write to the Free Software Foundation, Inc., 675 Mass Ave, Cambridge, MA 02139, USA.

SEE ALSO

SDL(3pm), OpenGL(3pm)

AUTHOR

Hiroyuki Ohsaki <ohsaki[atmark]lsnl.jp>
